NC CleanCell 1.0 Softwall Cleanrooms

Nano Clean CleanCell 1.0 Softwall Cleanrooms are designed to operate at >30 AC/H (air changes per hour), which comfortably satisfies the requirements ISO 14644-1:2015; ISO Class 7 'As Built', whilst providing a positive pressure displacement.

Achievable Air Change Rates:

• 2m x 2m (SW221): 30-120 AC/H
• 4m x 2m (SW421): 30-120 AC/H
• 3m x 3m (SW331): 30-50 AC/H
• 4m x 3m (SW431): 30-80 AC/H
• 5m x 3m (SW531): 30-65 AC/H
• 6m x 3m (SW631): 30-50 AC/H

The cleanliness classification achieved is an ISO classified clean environment is primarily a variable function of air change rate, filtration efficiency, process contamination rate, personnel contamination rate.

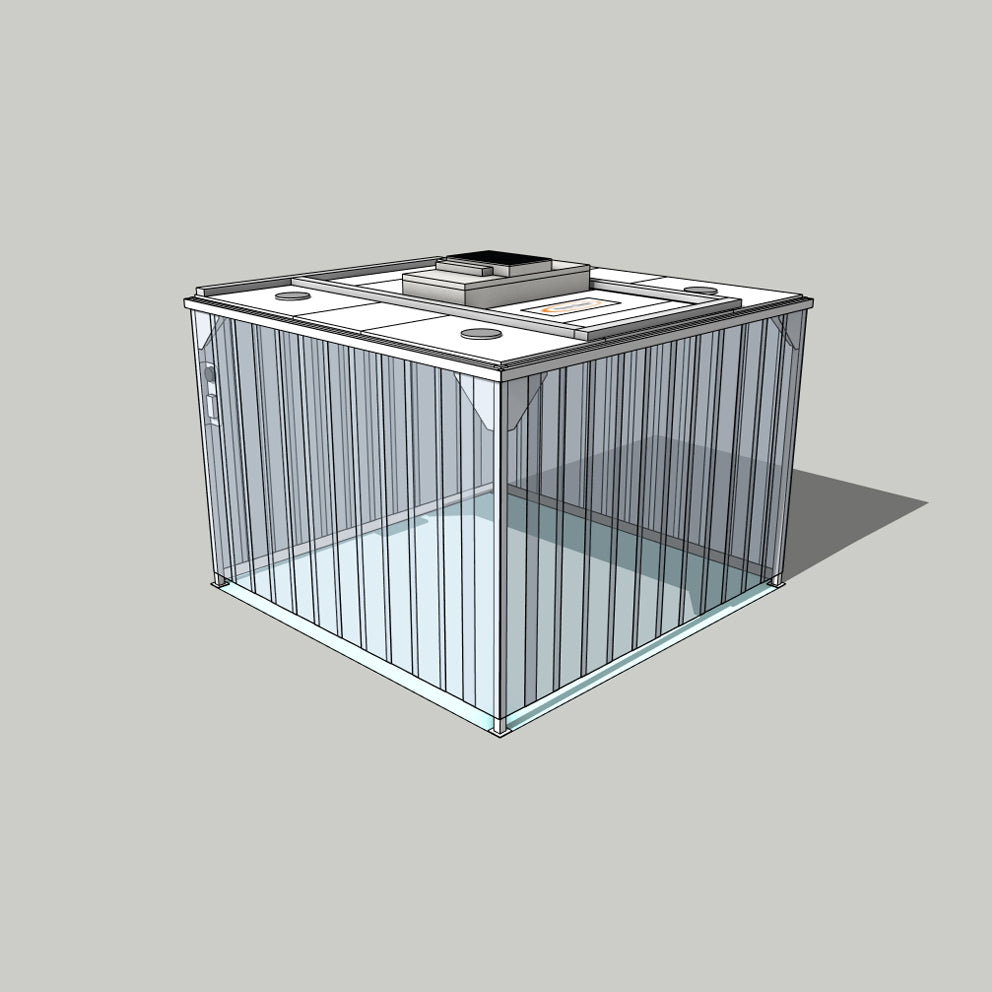

The Nano Clean CleanCell 1.0 Softwall Cleanroom is available in six standard sizes with a 2.1m internal ceiling height:

• 2m x 2m (SW221)
• 4m x 2m (SW421)
• 3m x 3m (SW331)
• 4m x 3m (SW431)
• 5m x 3m (SW531)
• 6m x 3m (SW631)

Overall ceiling height 2.45m Overall

We recommend an additional clearance of >150mm for pre-filter maintenance.

The Nano Clean CleanCell 1.0 Softwall Cleanroom structure is formed from a free-standing (mobile with castors/floor fixed), self-supporting, powder coated steel frame. The perimeter elevations are closed with overlapping strip vinyl curtains.

Where the existing floor finish is not adequate, the Nano Clean CleanCell 1.0 Softwall Cleanroom can be supplied with a supplementary vinyl tile Cleanroom floor finish - see Optional Extras.

The Nano Clean CleanCell 1.0 Softwall Cleanroom ceiling is formed from laminated foam panels that are fixed to the steelwork frame ceiling cross members with pressure sensitive double sided tape.

The Nano Clean CleanCell 1.0 Softwall Cleanroom will be configured with ceiling mounted, single pass, fan filter module(s) to provide a non-unidirectional, downflow, clean environment with positive differential pressure.

The fan filter module(s) will draw in ambient air from the space above the Nano Clean CleanCell 1.0 Softwall Cleanroom and air will bleed out at low-level through the apertures below the perimeter strip vinyl curtains.

1 x Fan Filter Module:

• SW221
• SW331

2 x Fan Filter Modules:

• SW421
• SW431
• SW531
• SW631

The HEPA filter differential pressure will be displayed on an indicator gauge.

The Nano Clean CleanCell 1.0 Softwall Cleanroom with Lobby electrical services will comprise:

• Containment trunking system
• LED downlighters
• Fan filter module speed controller

The Nano Clean CleanCell Softwall Cleanroom will require single phase electrical supplies for:

• Fan filter module circuit
• Lighting circuit
