Environmental Control for Nano-Scale Processes

Strict environmental control is critical for nano-tech facilities.

Nano Clean CleanCell 3.x Cleanrooms and CleanCell 4.x Cleanrooms deliver exacting control of particulate, temperature, relative humidity and differential pressure. Tight environmental control is key to maximising product quality and yield in Tech manufacturing, research and development applications.

CleanCell 4.x Integrated Cleanroom - ISO Class 6 with excavated floor void return air to accommodate parent building height limitation

CASE STUDY 1

NANO-TECH | INDUSTRIAL PRODUCTION

PACKAGING CHIPS

INTEGRATED CLEANROOM FACILITY

Dicing | Wire Bonding | Encapsulation

ISO 14644-1 | ISO Class 6

260m2

Asia

Design | Supply | Install | Commission | Qualification Test

GET IN TOUCH

DO YOU HAVE A CLEANROOM REQUIREMENT?

Nano Clean have decades of experience in the design and installation of Nano-Tech, Laser and Optical System Cleanrooms

Contact Us

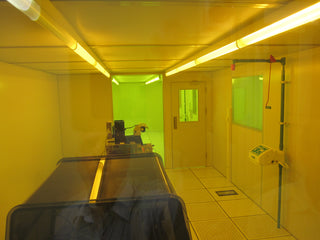

CleanCell 3.x Customised Cleanroom - ISO Class 5 with low-level return air grilles

CASE STUDY 2

NANO-TECH | INDUSTRIAL PRODUCTION

BIO-SENSORS

MODULAR CLEANROOM EXTENSION

Photolithography

ISO 14644-1 | ISO Class 5

20m2

United Kingdom

Design | Supply | Install | Commission | Qualification Test

GET IN TOUCH
CleanCell 4.x Integrated Cleanroom - ISO Class 6 with walk on ceiling for improved maintenance access

CASE STUDY 3

NANO-TECH | ACADEMIA

NANO FABRICATION

INTEGRATED CLEANROOM FACILITY

Thin Film Deposition | Fabrication | Dry Etch | Wet Etch

ISO 14644-1 | ISO Class 6

180m2

United Kingdom

Design | Supply | Install | Commission | Qualification Test

GET IN TOUCH
CleanCell 3.x Customised Cleanroom Facility

CASE STUDY 4

DEFENCE | SUPPORT SERVICE

OPTICAL SYSTEMS

INTEGRATED CLEANROOM FACILITY

Optical Assembly | Laser Alignment

ISO 14644-1 | ISO Class 5, 7 & 8

800m2

Confidential Location

Design | Supply | Install | Commission | Qualification Test

GET IN TOUCH
CleanCell 4.x Integrated Cleanroom - ISO Class 4 with unidirectional downflow with perforated floor for return air

CASE STUDY 5

NANO-TECH | ACADEMIA

NANO FABRICATION

INTEGRATED CLEANROOM FACILITY

Thin Film Deposition | Fabrication | Dry Etch | Wet Etch

ISO 14644-1 | ISO Class 5 & 6

140m2

Middle East

Design | Supply | Install | Commission | Qualification Test

GET IN TOUCH
CleanCell 4.x Integrated Cleanroom - ISO Class 8 Service Chase with inert gas fire suppression

CASE STUDY 6

NANO-TECH | ACADEMIA

NANO FABRICATION

INTEGRATED CLEANROOM FACILITY

Thin Film Deposition | Fabrication | Dry Etch | Wet Etch

ISO 14644-1 | ISO Class 6, 7 & 8

200m2

Middle East

Design | Supply | Install | Commission | Qualification Test

GET IN TOUCH
