NC CleanCell 1.2/361L Softwall Cleanroom (With Lobby)

Nano Clean CleanCell 1.2 Softwall Cleanrooms (with Lobby) are designed to operate at >30 AC/H (air changes per hour), which can comfortably satisfy the requirements ISO 14644-1:2015; ISO Class 7 'As Built', whilst providing a positive pressure displacement.

Achievable Clean Zone Air Change Rates:

• 3m x 3m (CC-1.4-SW331L): 30-90 AC/H
• 3m x 4m (CC-1.4-SW341L): 30-70 AC/H
• 3m x 5m (CC-1.4-SW351L): 30-80 AC/H
• 3m x 6m (CC-1.4-SW361L): 30-70 AC/H

The cleanliness classification achieved is an ISO classified clean environment is primarily a variable function of air change rate, filtration efficiency, process contamination rate, personnel contamination rate.

The Nano Clean CleanCell 1.2 Softwall Cleanroom (with Lobby) is available in four standard sizes with a 2.1m internal ceiling height:

• 3m x 3m (CC-1.4-SW331L)
• 3m x 4m (CC-1.4-SW341L)
• 3m x 5m (CC-1.4-SW351L)
• 3m x 6m (CC-1.4-SW361L)

Overall Height 2.45m
Minimum Height Clearance: 150mm

We recommend a minimum parent space clear headroom of 2.6m to allow for pre-filter maintenance.

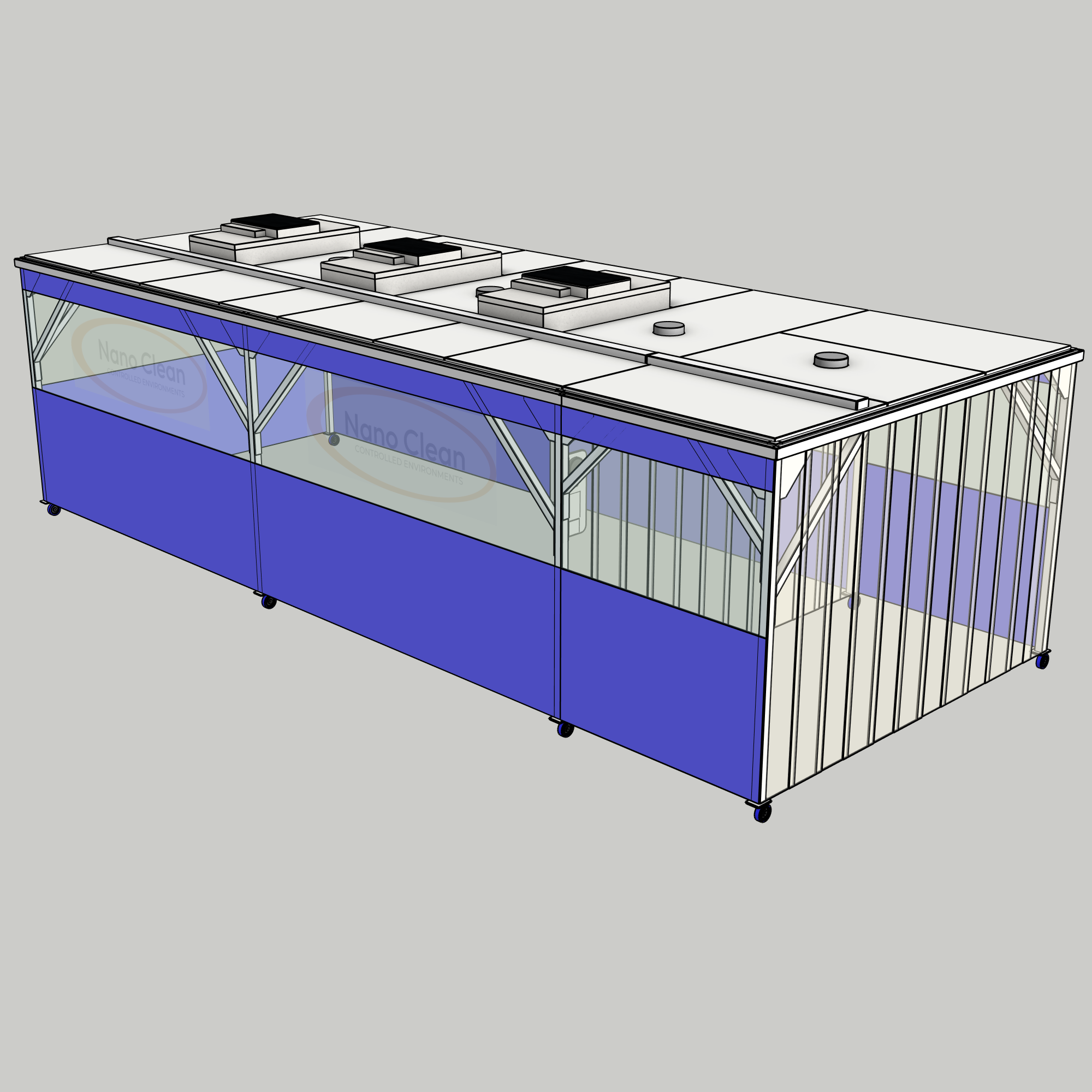

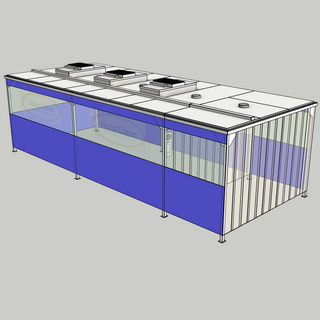

The Nano Clean CleanCell 1.2 Softwall Cleanroom (with Lobby) structure is formed from a free-standing (floor fixed or mobile with castors), self-supporting, powder coated steel frame.

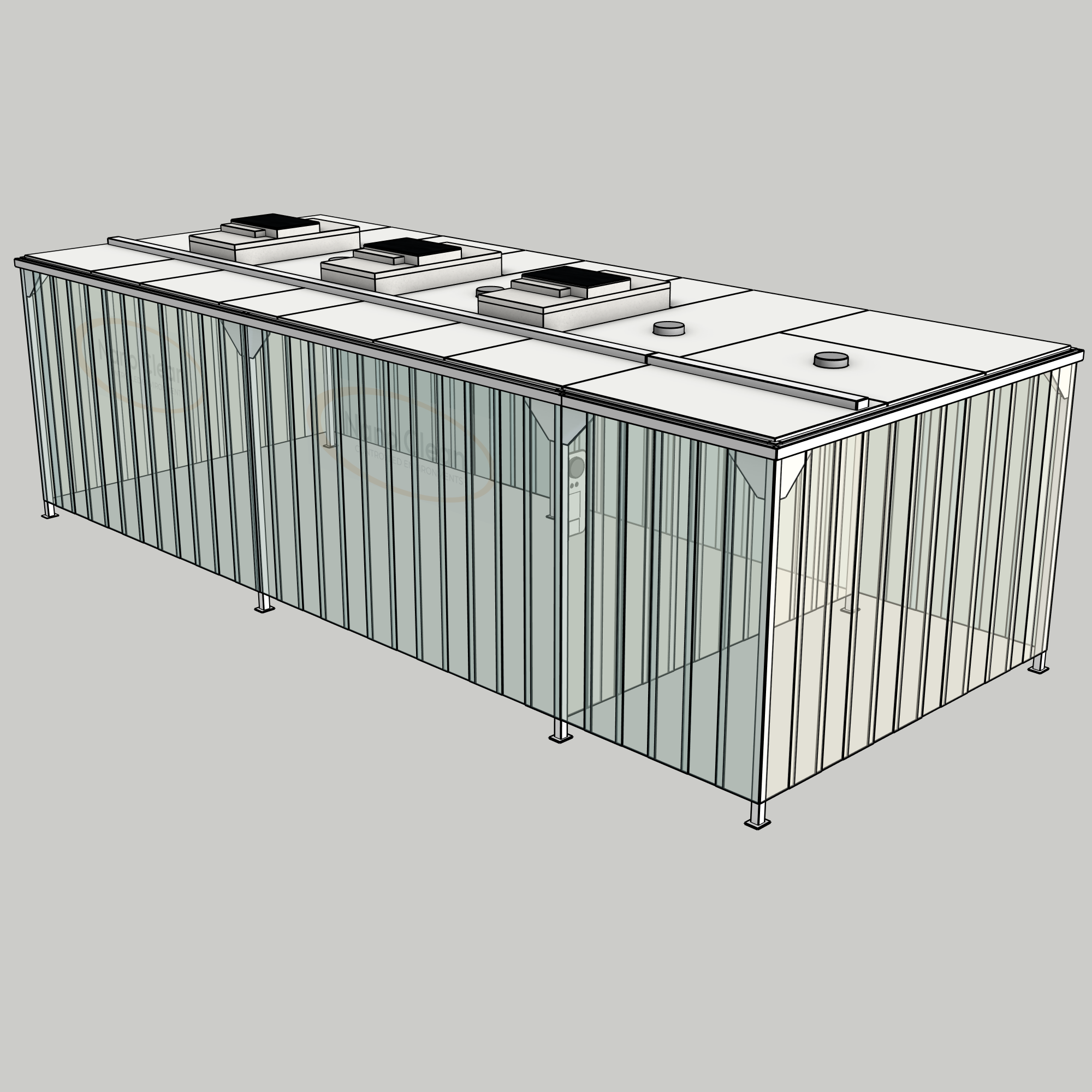

The Nano Clean CleanCell 1.2 Softwall Cleanroom (with Lobby) perimeter wall elevations are closed with overlapping strip vinyl curtains or flexible vinyl screens.

• Strip Vinyl Curtains can enable access on multiple elevations if required.
• Flexible Vinyl Screens can contain elevations to prevent access from multiple elevations if required.

Where the existing floor finish is not adequate, the Nano Clean CleanCell 1.2 Softwall Cleanroom (with Lobby) can be supplied with a supplementary CleanCell 1.x Vinyl Floor Kit.

The Nano Clean CleanCell 1.2 Softwall Cleanroom (with Lobby) ceiling is formed from laminated foam panels that are fixed to the steelwork frame ceiling cross members with pressure sensitive double sided tape.

The Nano Clean CleanCell 1.2 Softwall Cleanroom (with Lobby) will be configured with ceiling mounted, single pass, fan filter modules to provide a non-unidirectional downflow, clean environment with positive differential pressure displacement:

• 3m x 3m (CC-1.1-SW331L): 2 x Fan Filter Module
• 3m x 4m (CC-1.1-SW341L): 2 x Fan Filter Module
• 3m x 5m (CC-1.1-SW351L): 3 x Fan Filter Module
• 3m x 6m (CC-1.1-SW361L): 3 x Fan Filter Module

The fan filter modules will draw in ambient air from the space above the Nano Clean CleanCell 1.2 Softwall Cleanroom (with Lobby) and air will bleed out at low-level through the apertures below the perimeter strip vinyl curtains/flexible vinyl screens.

The HEPA filter differential pressure will be displayed on an indicator gauge.

Where comfort temperature control is required we have the optional CleanCell 1.x Cooling and Dehumidification Package.

The Nano Clean CleanCell 1.2 Softwall Cleanroom (with Lobby) electrical services comprise:

• High level containment trunking system
• LED downlighters
• Fan filter module speed controller

The Nano Clean CleanCell 1.2 Softwall Cleanroom (with Lobby) will require a single phase electrical supplies to:

• Fan filter module circuit
• Lighting circuit

Where electrical socket outlets or RJ45 LAN points are required we have optional CleanCell 1.x Dado Trunking Kits
